ALADDIN NU-TYPE MODEL B Lamp Burner With Model 23 Gallery (NEW) 100% Brass

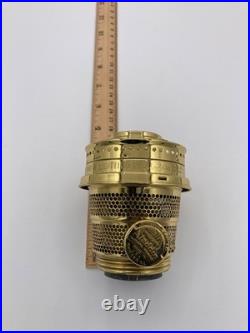

This is an Aladdin "Nu-Type" Model B kerosene burner, a precisely engineered lighting component produced by the Mantle Lamp Company of America between approximately 1933 and 1955. Its design represents a technological advancement in wick-based illumination, primarily defined by its side-draft air flow system and optimized mechanical components. Design Paradigm: The Model B transitioned from the older "center-draft" designs (Models 1-12) to a "side-draft" system. This innovation allowed air intake through perforations in the burner basket (visible in the image), which simplified the overall lamp architecture and accommodated a wider variety of lamp font (base) materials, particularly glass. Mechanical Engineering: A notable feature is the improved wick raiser mechanism. It incorporates large, coarse rack-and-pinion gearing designed for smoother operation and greater longevity compared to earlier models. The outer wick tube was also shortened to facilitate easier wick installation and maintenance. Materials and Manufacturing: The core burner components, including the piece shown, were typically made of brass to ensure optimal thermal and operational characteristics. The manufacturing was outsourced to Plume & Atwood in Connecticut, despite the Chicago, Ill.

Marking on the wick knob, which denotes the company headquarters location. Production Context: Production of the Model B burner ceased abruptly in 1955 when the Plume & Atwood factory was destroyed by a flood, resulting in the permanent loss of the original tooling. The design was held in high regard for its efficiency and reliability. This burner has a model B burner body, and a model 23 gallery. The gallery themselves are cross-compatible because they share a similar design that fits the Lox-On chimney and the same mantle.

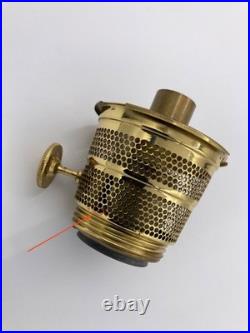

It is missing the model B wick, wick raiser and outer wick tube. There's also a small dent at two of the air intake holes, as shown in the last photo with the holes circled in red. However, these parts are still widely available brand new.

Message me if you have any questions.
